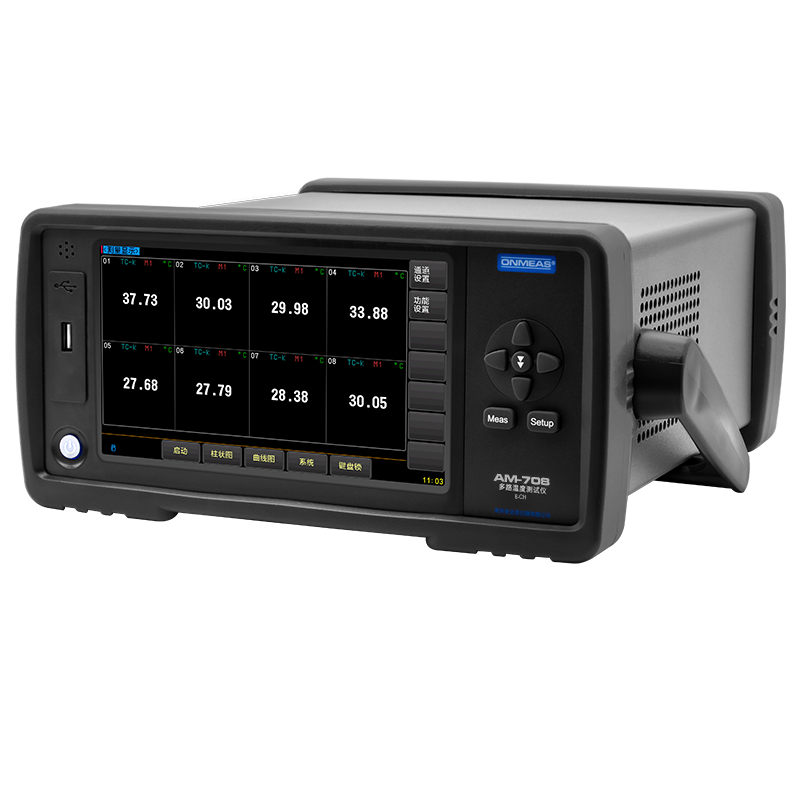

AM708 Multi-Channel Temperature Meter
ACTIVE
USB-232
RS232LANOPTIONS
SCPI
DATA LOGGERUSB-DISKSD CARD
OVERVIEW
    AM708 series (AM708,AM716,AM724,AM732,AM740,AM748,AM756,AM764) multi-channel temperature tester with high-performance ARM microprocessor control, 7-inch color LCD display, touch screen operation, easy to view temperature values, temperature changes Curves, histograms, etc., can collect multi-channel temperature data at the same time, super-super alarm and communication transmission, AM708 series can collect 64-channel temperature data, compatible with K/N/E/J/T/R/S/B Type thermocouple, fast response, stable data, and fault detection. Each channel can be set individually and independently corrected.

    The instrument supports USB communication, and data acquisition, analysis and printing can be realized through the standard computer software. Support USB disk storage for real-time storage of sampled data. Users can independently correct each data.

    The AM708 series uses fully isolated digital and analog signals, ## (can be tested for live (isolated voltage 230V rms, 330VDC), safe and reliable.
FEATURES
  • 7 inches TFT true color LCD display

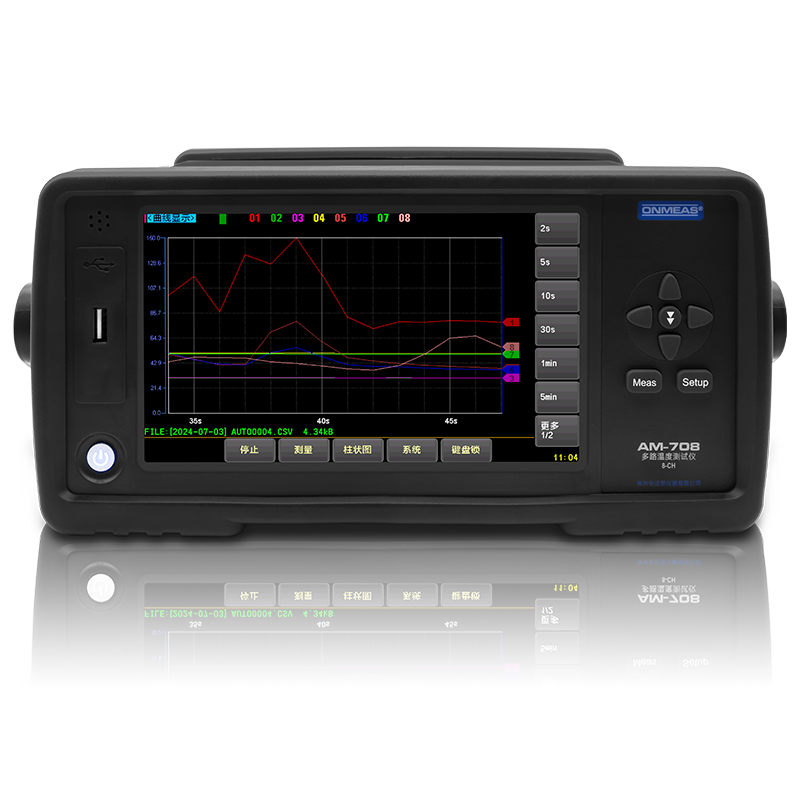

  • Histogram display, graph
  • Highest value, lowest value, average value display
  • Cold junction compensation
  • Standard USB disk interface, support for large-capacity storage devices.
  • Standard RS232C interface and USB interface
  • Automatic detection of broken couple
  • Specified channel scan
  • Standard data acquisition software
SPECIFICATIONS
GraduationThermocouple:J/K/T/E/S/N/B/R
Accuracy0.2%+1℃
Range-200℃~1800℃ (variation depend on graduation)
Resolution0.01℃
Channels8 channels;
CorrectionError correction for each channel
Comparatorhigh & low beep function for each channel
InterfaceRS232C, U-disc, USB
SoftwareData acquisition software
Cold JunctionAccuracy: 0.5℃
Other FunctionsTFT-LCD True color display, broken thermocouple check function
Power SupplyV: 85VAC～260VAC Fre：50Hz/60Hz Power：10VA
Dimension & Weight216x88x300mm weight：3kg
AccessoriesK thermocouple 8 channels (2 meters/ channel)
APPLICATIONS
    Suitable for multi-point temperature testing of manufacturers and quality inspection departments in home appliances, motors, electric appliances, thermostats, transformers, ovens, thermal protectors, power supplies, lighting, electric power, LED, etc.
DOCUMENTATION
DOCUMENTS
USER'S GUIDE CHINESE
ACCESSORIES
STANDARDS
NONE
OPTIONS
NONE
SOFTWARE
NONE
